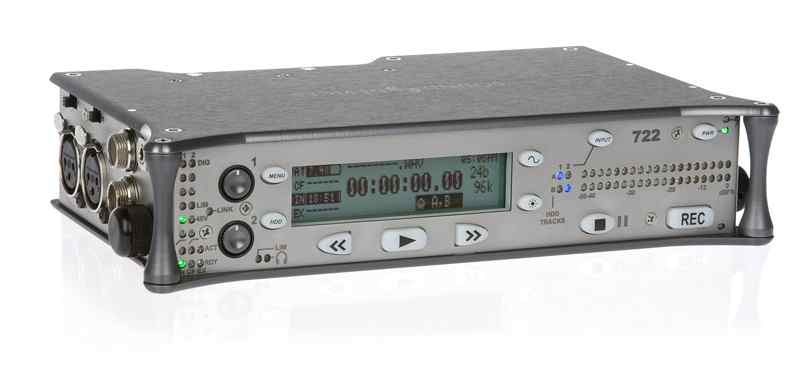

The two-channel 722 is a powerful file-based digital audio recorder. The super-compact device records and plays back audio to and from its internal hard drive or Compact Flash medium, making field recording simple and fast. It writes and reads uncompressed PCM audio at 16 or 24 bits with sample rates between 32 kHz and 192 kHz. Compressed (MP3) audio playback and recording from 64 kb/s to 320 kb/s are also supported.
The 722 implements a no-compromise audio path that includes Sound Devicesí next generation microphone preamplifiers. Designed specifically for high bandwidth, high bit rate digital recording, these preamps set a new standard for frequency response linearity, low distortion performance, and low noise.
No other recorder on the market matches its size or feature set. In addition, its learning curve is quite shortópowerful does not mean complicated. While the 722 is a very capable recorder by itself, it truly excels when used in conjunction with an outboard audio mixer such as Sound Devicesí own 442 or 302.
Its two recording media (hard drive and Compact Flash) are highly reliable, industry standard, and easily obtainable. The removable, rechargeable battery is a standard Sony-compatible Li-ion camcorder cell. The 722 interconnects with Windows and Mac OS computers for convenient data transfer and backup.
Key Features
- Two-channels of Sound Devices next generation microphone preamps with phantom, limiters, and high-pass filters
- Records to internal 40 GB hard drive, removable Compact Flash, or both storage medium
- AES3 (XLR) or AES3id (unbalanced AES on BNC) digital inputs and AES3id outputs
- Programmable, sunlight-viewable LED level metering
- WAV format, mono or poly files, uncompressed
- PCM audio
24-bit or 16-bit (with or without dither) and sampling at 32 kHz-192 kHz
- MP3 encode and decode, 32 to 320 kb/s stereo file
- FireWire (IEEE-1394) port for high-speed data transfer to computers
6-pin modular C. Link serial input and output for unit linking and future control and expansion
- Removable Li-on rechargeable battery compatible with Sony M- and L-mount Li-on batteries
10ñ18 VDC external input powers and charges on-board battery
- Aluminum & stainless-steel chassis for exceptional durability and light weight
- Class-defining compact size
- Designed for the same operational environmental extremes as Sound Devices field mixers
Specifications
| Sampling Frequency |
internal: 32, 44.1, 48, 48.048, 88.2, 96, 96.096, 176.4, 192 kHz;
external: 32–192 kHz via word clock input |
| Internal Data Path and Processing: |
32 bit, 192 dB dynamic range |
| A/D, D/A Converters: |
24 bit, 192 kHz sample rate maximum |
| A/D Dynamic Range: |
114 dB, A-weighted bandwidth
110 dB, 20 Hz – 22 kHz bandwidth |
| D/A Dynamic Range: |
112 dB, A-weighted bandwidth
108 dB, 20 Hz–22 kHz bandwidth |
| Frequency Res. Mic or Line: |
10 Hz–40 kHz, +0.1, -0.5 (gain controls centered), Fs 96 kHz |
| Equivalent Input Noise: |
Mic: -133 dBu max (-135 dBV), 50 ohm source, A-weighted filter
Mic: -131 dBu max (-133 dBV) max, 50 ohm source, 20 Hz–20 kHz BW flat filter, gain fully up
Mic: -130 dBu max (-132 dBV), 150 ohm source, A-weighted filter
Mic: -128 dBu max (-130 dBV), 150 ohm source, 20 Hz–20 kHz BW flat filter, gain fully up |
| THD + Noise: |
Mic: 0.004% max (1 kHz, 22 Hz–22 kHz BW, gain control down, -15 dBu input); line: 0.004% max (1 kHz, 22 Hz–22 kHz BW, gain control down, +16 dBu input) |
| Gain: (input dBu to -20 dBFS) |
mic (normal gain mode): 25 to 70 dB; mic (low gain mode): 10 to 55 dB; line: -6 to 18 dB, 0.1 dB increments |
| Input Clipping Level: |
Mic input: -5 dBu minimum (normal gain mode, gain control fully down); mic input: +10 dBu minimum (low gain mode, gain control fully down); line input: +26 dBu minimum (gain control fully down) |
| High-Pass Filters: |
40, 80, 160, 240 Hz @ 12/18/24 dB/oct (all menu selectable) |
| Mic Powering: |
(each XLR selectable): 48 V phantom through 6.8k resistors, 10 mA per mic available, menu-selected per channel in mic or line level positions |
| Mic Input Limiters: |
analog (pre-A/D converter), dual-stage optocoupler and FET,
-4 dBFS threshold, 20:1 limiting ratio, 5 mS attack time, 200 mS release time |
| Analog Line Output Clipping Level: |
+24 dBu minimum, 10k ohm load
Attenuation & Resolution 0 to 40 dB, 1 dB increments |
| I/O – Digital: |
AES3-id 75 ohm, 0.5 V p-p, S/PDIF compatible with RCA adapter |
| Digital Storage: |
internal hard drive ATA-5 interface 1.8-in or 2.5-in hard drive 4200–7200 RPM supported, FAT32 formatted,; Compact Flash CF type I, II, and + (microdrive) compatible, FAT32 formatted; file types: WAV, mono or polyphonic; MP3 @ 64, 96, 128, 240, or 320 kb/s stereo; utilities: format, speed test, and repair utility for internal HD and CF volumes |
| Data Transfer / Control: |
FireWire peripheral-mode,IEEE-1394a compliant, 6-pin FireWire, Windows 2000, XP, Mac OS X only: C. Link 6-pin modular input and output, RS-232 machine control, word clock, time code transfer |
| Metering: |
76-segment (4 x 19), sunlight-viewable, selectable peak, VU, or peak (with or without peak hold) with VU ballistics, variable brightness |
| Powering: |
operating cell, removable 7.2 V (nominal) Sony M- or L-type Li-on, operational from 6 – 8 V; time code battery, 1.2 V AA nickel metal-hydride; power supply (external) 10–18 V, 1 A minimum, via locking 4-pin Hirose connector, use Hirose #HR10-7P-4P (DigiKey# HR100-ND) for locking mating DC connector; pin-4 = (+), pin-1 = (-) or pin-3 = (+) and pin-2=(-). |
| Environmental: |
operation and storage: ambient temperature 5–55° C, relative humidity (non-condensing) <80% |
| Other: |
LCD Display 202 x 32 pixel, extended temperature, backlit display; tone oscillator 100 Hz–10 kHz, variable output, assigned to tracks or outputs (menu-selectable); |
| Dimensions and Weight: |
45 mm x 209 mm x 125 mm (H x W x D) 1.8” x 8.2” x 4.9” mass unpackaged: 1.2 kg, (2.6 lbs) without battery |
|
