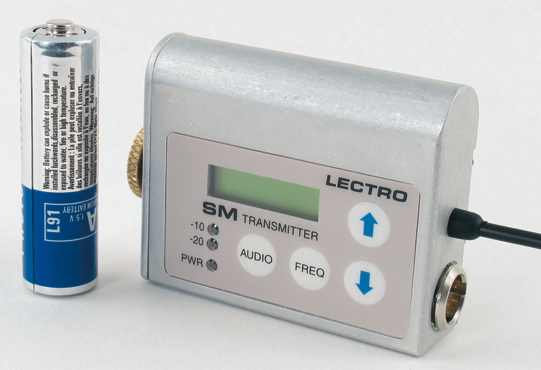

Lectrosonics sets a new standard for size, power, reliability and functionality with the ultra miniature SM transmitter. Not much bigger than two AA batteries, the 100 mW SM packs all user controls onto an easy to operate control panel that includes an LCD, four membrane switches for adjusting operating frequency and modulation level, plus both modulation and power indicators.

The switches can also be used to set compatibility modes, allowing the SM to work with all of Lectrosonics Digital Hybrid Wireless receivers, plus Lectrosonics 200 Series and 100 Series analog products (and even analog receivers from some other manufacturers), and Lectrosonics IFB systems.

Switching power supplies throughout the design allows nearly six hours of operation using a single AA lithium battery, or 4.5 hours with a rechargeable 2500 mAh NiMH battery. Even an alkaline AA will run for about 1.5 hours.

•  Digital Hybrid Wireless™  Technology
• LCD and membrane switch control panel
• 256 synthesized UHF frequencies
• 100 mW output power
• Wide input dynamic range
• Four-level audio metering
• DSP based pilot-tone signal
• Circulator/Isolator output stage
• Splash-proof, machined aluminum housingv
• Non-corrosive, superhard finish
• Includes water-resistant elastic holster with non-corrosive belt clip

FCC Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: The system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1–888–CALL–FCC (TTY: 1–888–TELL–FCC) or visit the FCC's wireless microphone Web site.

If you're a licensed Part 74 operator, you may continue to use 50mW and greater wireless systems under certain conditions. Eligible parties include a person or organization engaged in the production or filming of motion pictures or television, so, to the best of our knowledge, this includes below the line crew. More information on also can be found here. To apply for a license, visit www.fcc.gov/Forms/Form601/601.html

If you have any questions about these usage restrictions, please give us a call at 1-866-GOTHAM-8 or e-mail info@gothamsound.com.
